BETEX hydraulic pullers are ideal for pulling a wide variety of parts, including bearings, bushings, wheels, gears and pulleys. They have a compact, ergonomic design and can be easily operated by one person. BETEX hydraulic pulleys are very popular for their practicality, safety and strength.

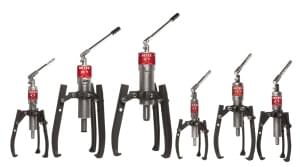

Hydraulic pulleys HP 2/3 arms
with integrated pump and cylinder, in PE case – six sizes
Type HP43 capacity 4 t, max. shaft length 185 mm, max. spread 255 mm, stroke 60 mm
Type HP63 capacity 6 t, max. shaft length 230 mm, max. spread 330 mm, stroke 70 mm
Type HP83 capacity 8 t, max. shaft length 230 mm, max. spread 350 mm, stroke 85 mm
Type HP123 capacity 12 t, max. shaft length 270 mm, max. spread 375 mm, stroke 85 mm
Type HP203 capacity 20 t, max. shaft length 360 mm, max. spread 520 mm, stroke 111 mm
Type HP303 capacity 30 t, max. shaft length 360 mm, max. spread 550 mm, stroke 111 mm
Hydraulic pulleys HSP 2/3 arms
self-centring with integrated pump and cylinder, in PE case – six sizes
Type HSP43 capacity 4 t, max. shaft length 190 mm, max. spread 315 mm, stroke 60 mm
Type HSP63 capacity 6 t, max. shaft length 230 mm, max. spread 390 mm, stroke 70 mm
Type HSP83 capacity 8 t, max. shaft length 280 mm, max. spread 463 mm, stroke 85 mm
Type HSP123 capacity 12 t, max. shaft length 300 mm, max. spread 515 mm, stroke 85 mm
Type HSP203 capacity 20 t, max. shaft length 325 mm, max. spread 520 mm, stroke 111 mm
Type HSP303 capacity 30 t, max. shaft length 415 mm, max. spread 620 mm, stroke 111 mm
Hydraulic pulleys HXP 2/3 arms
self-centring, separate 2-stage handpump – five sizes
Type HXP83 capacity 8 t, max. shaft length 280 mm, max. spread 460 mm, stroke 85 mm
Type HXP123 capacity 12 t, max shaft length 300 mm, max. spread 515 mm, stroke 85 mm
Type HXP203 capacity 20 t, max. shaft length 325 mm, max. spread 520 mm, stroke 111 mm
Type HXP303 capacity 30 t, max. shaft length 415 mm, max. spread 620 mm, stroke 111 mm
Type HXP503 capacity 50 t, max. shaft length 455 mm, max. spread 860 mm, stroke 330 mm
Hydraulic pulley HPP 123 – “3-in-1”
This hydraulic pulley has three functions – pushing, pulling on the outer ring and pulling on the inner ring
For other types of hydraulic pulleys, see the BETEX catalogue.

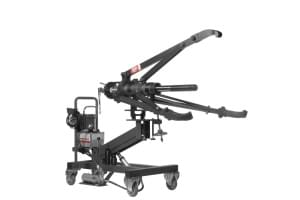

Mobile hydraulic pulleys
Suitable for repairs of engines, pumps, gears etc.
These mobile pulleys are suitable for use in the mining, paper, shipbuilding and chemical industries.
Betex mobipuller 25 t – various types
Betex mobipuller 50 t – various types
Betex mobipuller 100 t – various types
Betex mobipuller 150 t – 3-arm puller, self-centring, 150-ton capacity, max. spread 1600 mm, max. stroke length 325 mm
More details in the catalogue:
