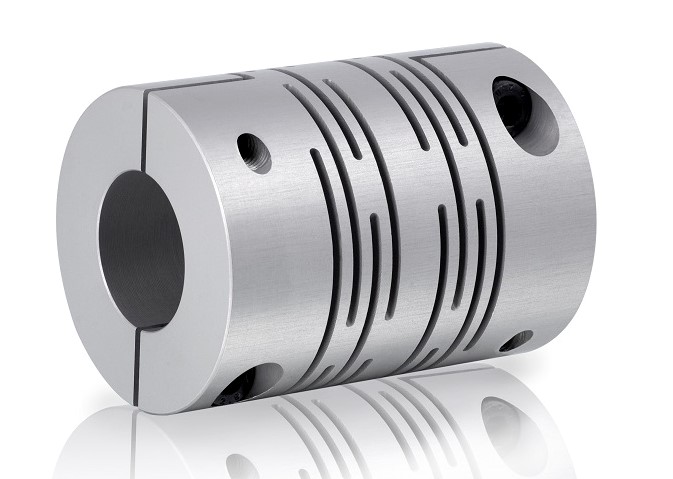

Sliced couplings ASK
ASK shaft couplings use theirunique slit structure, so they do not contain the elastic element.
Flexibility is provided by the slot system, which is the perfect solution for misaligned shafts or installation situations involving high levels of resonance. The ASK type series is also ideally suited to applications involving frequent load changes, even during reversing duty.
This one-piece coupling construction ensures not only absolute stability at the highest speeds (> 30,000 rpm), torque of up to 1,100 Nm and low moment of inertia, it also allows for maximum torsional stiffness due to dynamic load changes.
Basic characteristics of ASK couplings
- Extreme torsional stiffness
- Excellent resonance damping
- Compensates for deviations
- High thermal stability
- Maintenance free
ASK sliced couplings are made of various materials – light aluminium alloy, with anticorrosive coating, steel, stainless steel, PEEK.
Sliced couplings can be used in a variety of applications. Their technology can be adapted to meet customer specific requirements.
ASK couplings can be used in all types of linear, rotary and oscillating drives, as well as spindle drives.
- Machine tools
- Packaging technology
- Food industry
- Textile industry
- Printing machines
- All types of vehicles
ASK coupling types:
ASK BB – Sliced coupling with groove for tongue
ASK DD – Sliced coupling with quick-clamping units. Extreme power transmission at high speeds
ASK BBH – Sliced coupling with removable clamping hub for easy mounting
ASK SL – Extended sliced coupling and special length
ASK BC – Sliced coupling with spread hub for hollow shafts
ASK AA – Sliced coupling with screws
More details in the catalogue:
