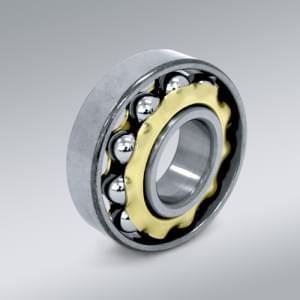

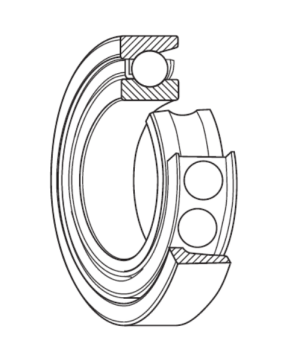

Magneto bearings

Magneto bearings are only suitable for small radial loads and small axial loads in one direction. They can be used for high speeds. The inner groove of magneto bearings is a little shallower than that of deep groove bearings. Since the outer ring has a shoulder on only one side, the outer ring may be removed, which is often advantageous for mounting.

In general, two of these bearings are used in duplex pairs. Magneto bearings are small bearings with a bore diameter of 4 to 20 mm and are mainly used for small magnetos, gyroscopes, instruments, etc.

Pressed brass cages are generally used.

Bearing series: E.., BO.., L..
